This guide covers setting up the scan station and using a scanner to import batches of documents into OnBase using the Unity client. Departments must be licensed for one scanner.

Configuring your Scan Station

Perform these steps to configure your scan station. Not all users will have access to make these changes; contact the Help Desk if necessary. You should only have to perform these steps once for each scan station.

1. Launch the Unity Client
2. Go to the File menu and select User Options




3. Select Imaging from the list at the left of the User Options window




4. Select Production Document Imaging (KOFAX or TWAIN) and click Save



5. Click Batch Scanning on the Home tab of the menu

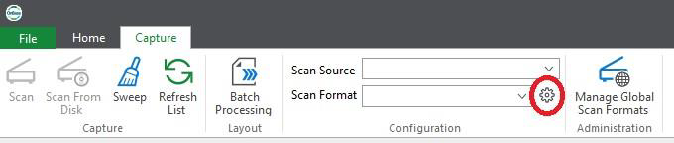

6. Click the gear icon for Manage Scan Formats on the Batch Scanning tab of the menu

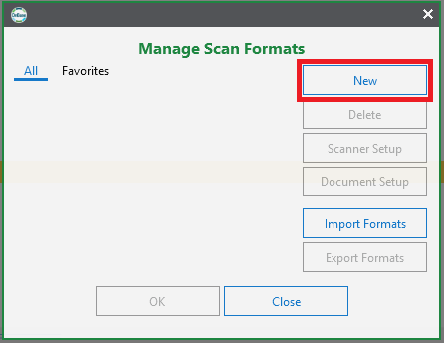

7. Click New to create a new scan format




8. Type a name for your new scan format and select the Source Type




9. Choose your scanner from the available scanners list and click OK

Scanning Documents

Now that your scanner is configured, you are ready to scan your documents. Perform these steps to scan into OnBase.

1. Click Batch Scanning on the Home tab of the menu




2. Choose the appropriate scan queue for the documents being scanned. You can use the search bar at the top of the list to help find the desired scan queue




3. Choose one of the following scan modes. Typically, No Index should be selected




   1. No index: All document type selection and keyword value indexing will occur in Batch Processing after the batch is scanned
   2. Pre-index: The document type will be selected prior to scanning the batch. Keyword values can be entered as well, but the batch will still require additional indexing for other keyword values.
   3. Full Index: The document type and all keyword values will be entered prior to scanning the batch. The batch will bypass the initial indexing status queue and will move straight to the Awaiting Commit status if no other indexing is required

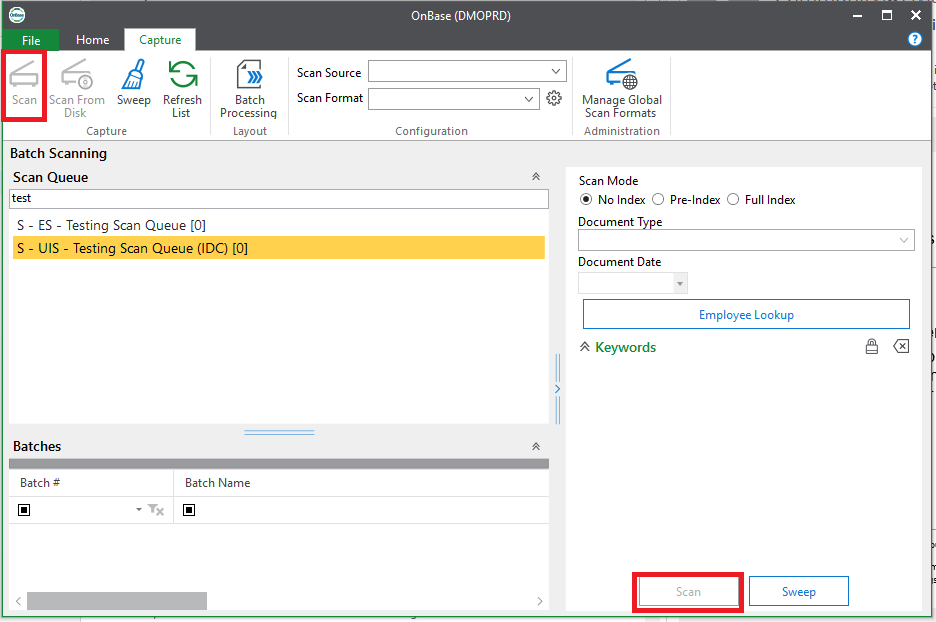

4. Click Scan in the lower right-hand panel or on the Capture tab of the menu




5. Enter a name for your batch (if prompted, some scan queues will create thename automatically) and select your scan format




6. this time, make sure the documents have been placed into the scanner’s feeder tray and are ready for scanning (staples, paper clips and sticky notes removed). Then click Scan



7. When all pages have been scanned, you will be prompted with the following options. Most of the time “Done” should be used




8. At this time, you can review pages and make any necessary changes. If Advanced Document Review is enabled in User Options, that will be displayed at this time. When you are ready to send the batch to indexing, click Back to go back to Batch Scanning to scan another batch or Go to Batch to go to Batch Processing and begin indexing





Sweeping Documents

In addition to scanning paper copies, OnBase also allows for documents that already exist electronically to be imported as batches from a folder on your computer or network. Perform these steps to sweep into OnBase.

1. Click Batch Scanning on the Home tab of the menu




2. Choose the appropriate scan queue for the documents being scanned. You can use the search bar at the top of the list to help find the desired scan queue




3. Choose one of the following scan modes. Typically, No Index should be selected




   1. No index: All document type selection and keyword value indexingwill occur in Batch Processing after the batch is scanned
   2. Pre-index: The document type will be selected prior to scanning the batch. Keyword values can be entered as well, but the batch will still require additional indexing for other keyword values.
   3. Full Index: The document type and all keyword values will be entered prior to scanning the batch. The batch will bypass the initial indexing status queue and will move straight to the Awaiting Commit status if no other indexing is required


4. Click Sweep in the lower right-hand panel or on the Capture tab of the menu

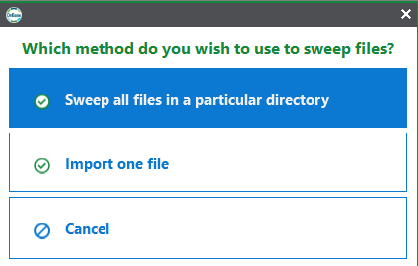

5. Choose whether you would like to sweep all files in a folder, or just one file




   1. To sweep all files in a folder, click the browse button at the right and navigate to the desired folder. Make any optional selections, then click Sweep




   2. If you choose to sweep only one file, a file browser window will open. Navigate to the desired document and click Open




6. At this time, you can review pages and make any necessary changes. If Advanced Document Review is enabled in User Options, that will be displayed at this time. When you are ready to send the batch to indexing, click Back to go back to Batch Scanning to scan another batch or Go to Batch to go to Batch Processing and begin indexing
